JL Audio M3 Series 7.7" Marine Coaxial Speakers w/Grey Metallic Sport Grilles - M3-770X-S-Gm [010-03066-00]
- Brand
- JL Audio
- SKU:
- CWR-106125
- UPC:
- 699440935203
- MPN:
- 010-03066-00

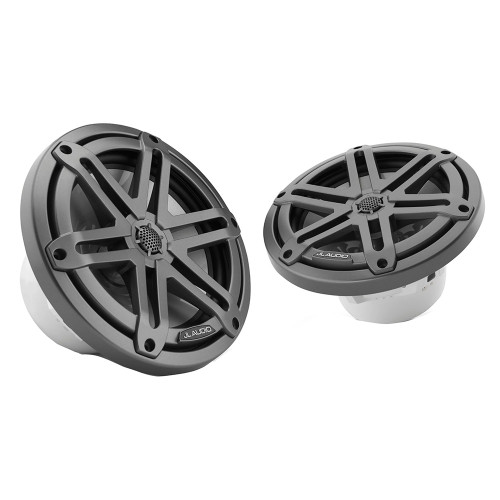

M3 Series 7.7" Marine Coaxial Speakers with Grey Metallic Sport Grilles - M3-770X-S-Gm
Purpose-engineered and built for real marine duty, M3 coaxial systems deliver excellent performance at a more affordable price than our maximum-performance M6 models.
The oversized 7.7-inch design of the M3-770X results in increased efficiency (more output for a given amount of power). This gives them the ability to play louder and cleaner at higher volumes than smaller speakers.
The woofer design is optimized to operate with a large volume of air behind it (at least 2 cu. ft. / 57 l). Operating this coaxial system in less space will compromise its low-frequency performance.
A 0.75-inch pure silk dome tweeter, specially treated to withstand the marine environment, handles the high-frequency duties. Silk has been chosen for its lightness, excellent damping properties, and smooth response characteristics.
Although M3-770X Coaxial Systems can be used with as little as 20 W per channel, for best audio performance we recommend amplifiers capable of between 75-100 W of continuous power per channel.
*Sold as a pair
Specifications:
- Continuous Power Handling (RMS): 70w
- Recommended Amplifier Power (RMS): 20 - 140w/ch
- System Efficiency: 90.5 dB @ 1 W / 1 m
- System Nominal Impedance: 4 ohm
- System Frequency Response: 45 Hz - 25 KHz ± 3 dB
Specifications:
- LED Lighting: No
- Mounting Style: Surface
- QTY: Pair
- Size: 7.7"
- Watts RMS: 70w
- Box Dimensions: 5"H x 9"W x 17"L WT: 7.8 lbs
- UPC: 699440935203
Owner's Manual (pdf)
